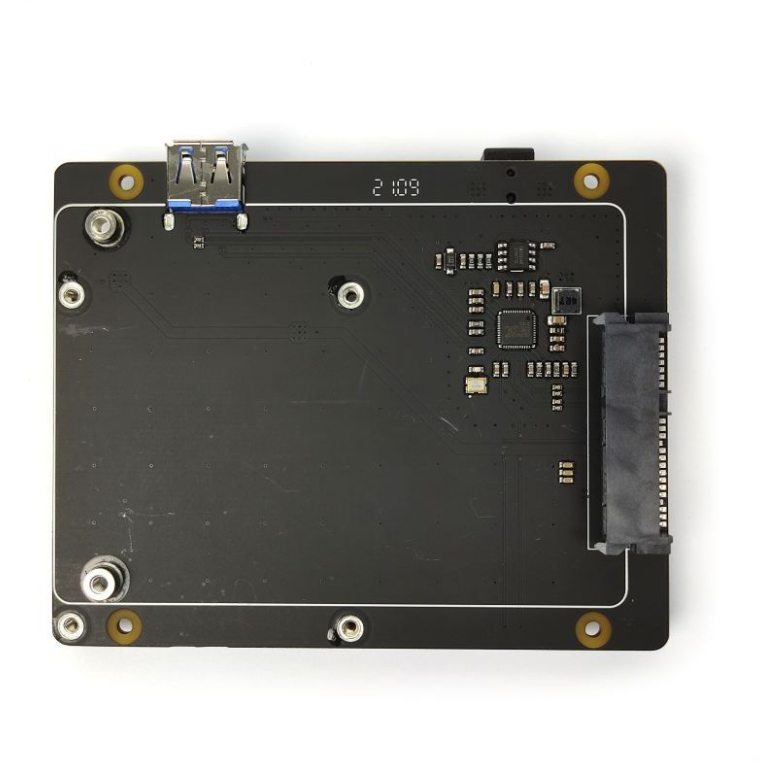

USB3.0 to 2.5" SSD Expansion board for RPi4B (V2.0)
Skip to product information
USB3.0 to 2.5" SSD Expansion board for RPi4B (V2.0)
- Supports up to 4TB 2.5-inch SATA hard disk drives (HDD) / solid-state drive (SSD) (Theoretically it can work with 6TB or 8TB as well. But actually we do not test the X825 board with 6TB or 8TB HDD, you can have a try)
- Ideal storage solution for Raspberry Pi 4 Model B
- UASP supported for Raspberry Pi 4, NOT support TRIM
- Use a shorter USB 3 connector to reduce the overall height
- Powers the Raspberry Pi via Pi's 40-pin header
- The Red LED indicator indicates powered status and the blue LED indicator indicates drive status
- USB 3.1 Gen1 to SATA 6Gb/s Bridge Controller
- Use new 4pcs test pins to power each other with raspberry pi 4, no additional wire required
- Quick file transfer with high-speed USB 3.1 connectivity from a PC or a Mac
- Powers the Raspberry Pi - no additional power supply for RPi 4
- Power Supply through the DC Barrel:
- Power supply: AC 100 - 240V input 50 / 60Hz, 5V DC 4A output
- DC Power Plug Size: 5.5*2.5mm
