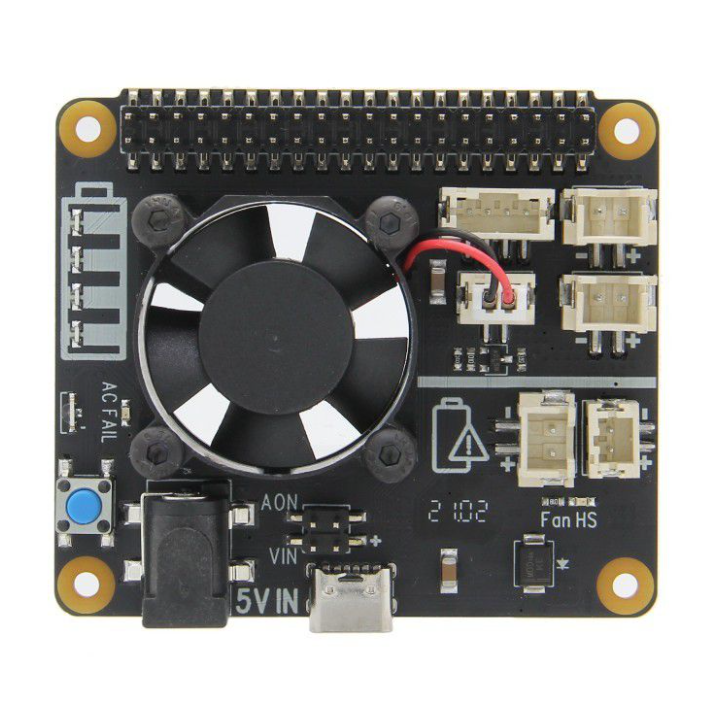

Raspberry Pi X708 Power Management and UPS HAT
- Excellent UPS function such as Power Loss Detection (PLD), Automatic Safe Shutdown (ASD), Auto Power On (AON) etc., DC 5V Max. 8A output;
- Comes with a cooling fan, no extra cooling solution is needed.
- HAT (Hardware Attach on Top) size. Separate the battery from the expansion board, which can save a lot of space, which will bring more flexibility.
- Reserved two kinds of battery port (XH2.54 and PH2.0), supports 3.7V 18650 lithium battery and 3.7V lithium polymer battery, No capacity limit, only request 3.7V lithium battery.
- Powers the Raspberry Pi via the 40-pin header - no additional cabling required
- Standard Raspberry Pi extension interface, compatible with other expansion boards

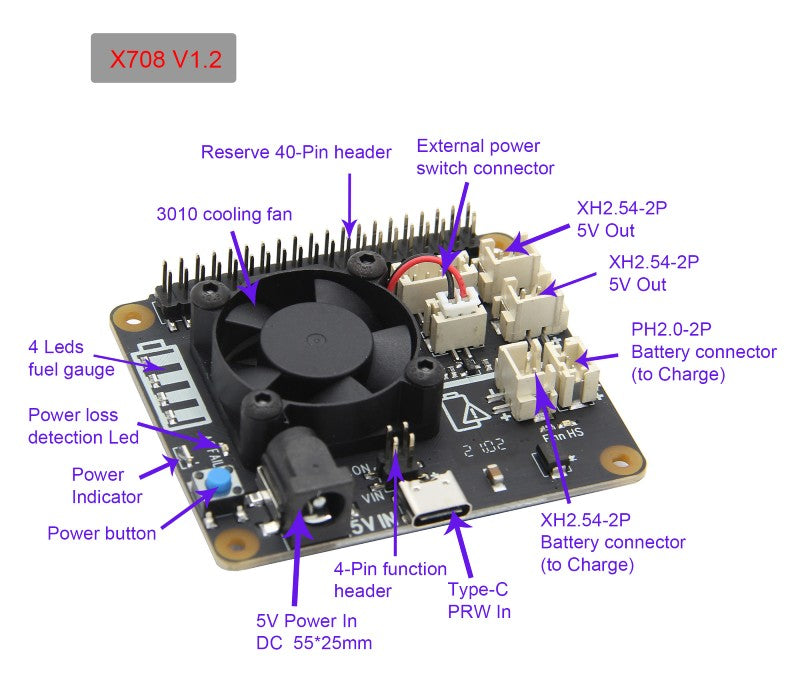

- DC power jack (5.5*2.5mm) and Type-C socket convenient for power input
- On-board PH2.0 connector allows connecting external power switch and DIY your perfect case
- On-board XH2.54 power output connector allows to power other devices

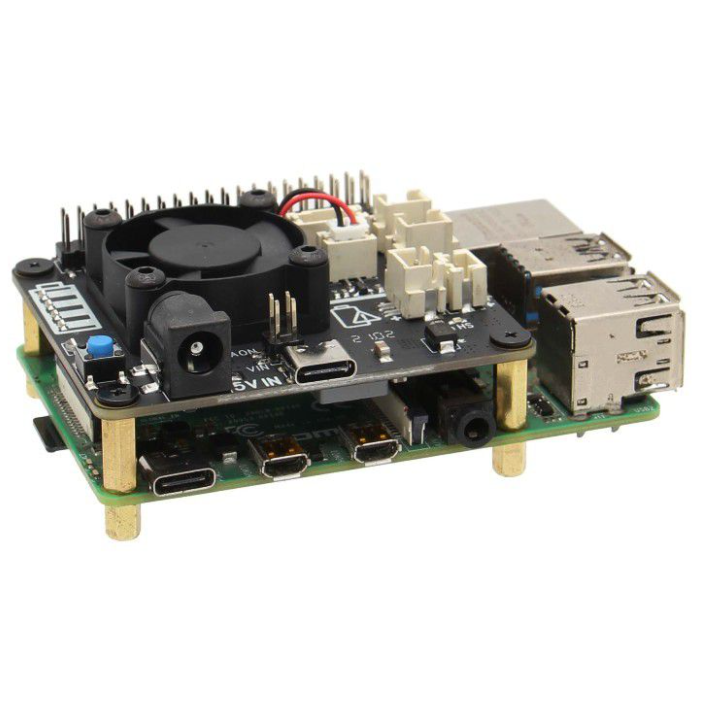

- Mounting holes and standoffs provide mechanical stability of the Raspberry Pi and X708 assembly
- Compatible with:
- Raspberry Pi 4 Model B
- Raspberry Pi 3 Model A+
- Raspberry Pi 3 Model B+
- Raspberry Pi 3 Model B
- Raspberry Pi 2 Model B
- Raspberry Pi 1 Model B+
- Operating System
- Raspbian Stretch
- Safe shutdown function tested for Raspbian, other operating systems to be tested and advised
- Smart and powerful Uninterruptible Power Supply (UPS)
- Provides continuous operations for up to 10~30 hours (depending on battery type and qty used)
- Max 5.1V 8000mA Power Backup for even the most demanding RPi setups
- Supports 2A/3A fast battery charging
- Integrated overcurrent protection and over-voltage protection
- Integrated Maxim's fuel-gauge systems (Reading battery voltage and percentage via i2c)
- Integrated 10-A fully-integrated synchronous boost converter
- Intelligent automatic charging and discharging
- Operate in both charge mode and boost mode to allow full system management and battery power mgt
- Integrated IN-to-SYS pass-through path to pass the input voltage to the system
- Advanced system power-path management avoids batteries frequent charging and discharging
- Advanced system power-path management allows 3A fast charging and powering Raspberry Pi at the same time
- On-board 4 green LEDs indicate battery charging and discharging levels of 25%, 50%, 75%, and 100%
- Batteries attach via PH2.0-2P or XH2.54-2P
- Power supply via Type-C socket : 5Vdc ±5%, ≥3A
- Via DC power jack : 5Vdc ±5%, ≥4A
- UPS output : 5.1V ±5% Max 8A
- UPS charging current: 1.8~2.2A / 2.3~3.2A
- Terminal Battery Voltage : 4.24V
- Recharge Threshold : 4.1V
- Battery: 3.7V Lithium Battery
