Raspberry Pi U100 UPS HAT - 5VDC 3A Continuous Power
- Power supply input voltage range: 5V~12V
- Output: 5V/3A, provide output 5V/3A continuously and stably
- Support Type-C PD fast charge protocol; Support Huawei FCP, Samsung AFC, MTK PE+1.1/2.0 input fast charge protocol. You can apply more power from the adapter to reduce charging time.
- Support input over-voltage protection, IC over-temperature protection.

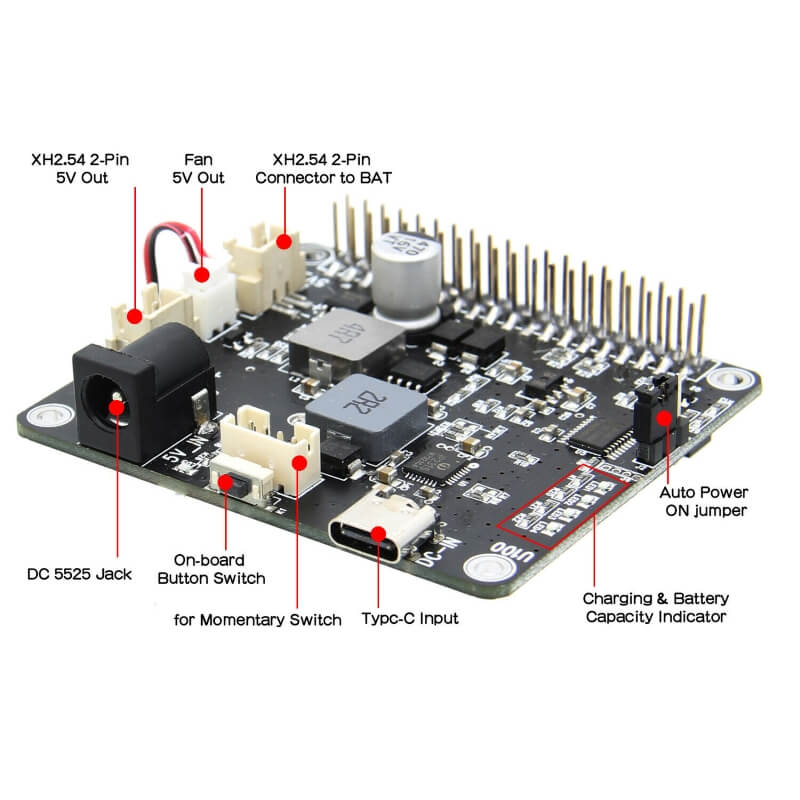

- Onboard switch button.

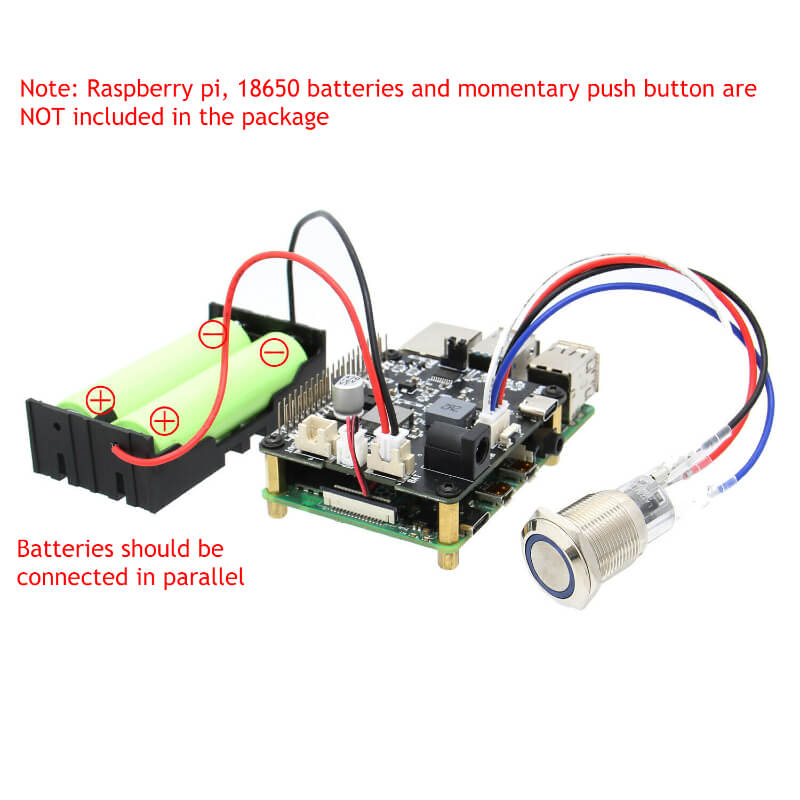

- Reserve 4P switch connector allows the use of an external momentary button.

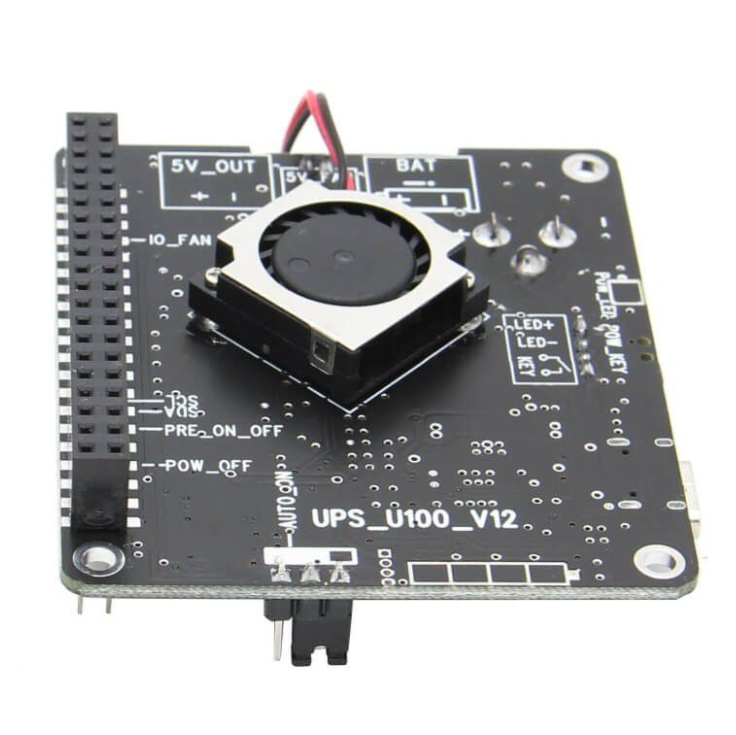

- Equipped with a 2006 fan to cool the Raspberry Pi motherboard.
- Compatible with X857/X862/X872, X829/X825, and their matching case to build a NAS storage system with UPS function.
- Press about 100ms-2000ms to turn on, and press about 100ms-2000ms to turn off.
- Support to enable AUTO POWER ON function through JUMPER

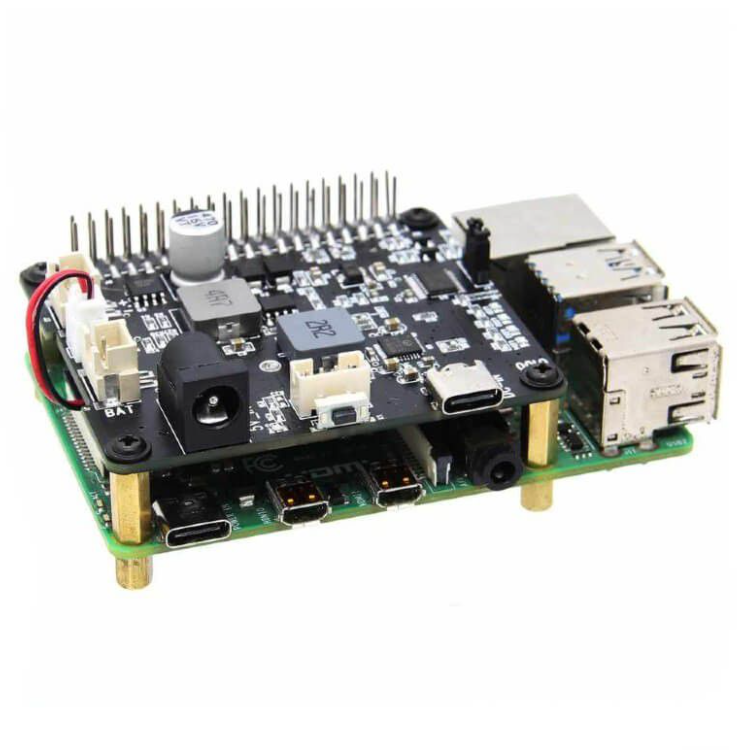

- Support stacking other HAT expansion boards, (need to add a 2*20 header)
- LED1-LED4 indicates the remaining battery capacity.
- LED5 indicates the current power supply and charging status; when U100 is outputting, the LED5 is always on, and will flash quickly if it is charging; when U100 is not outputting, LED5 will flash slowly if it is charging, otherwise, LED5 will be off.
