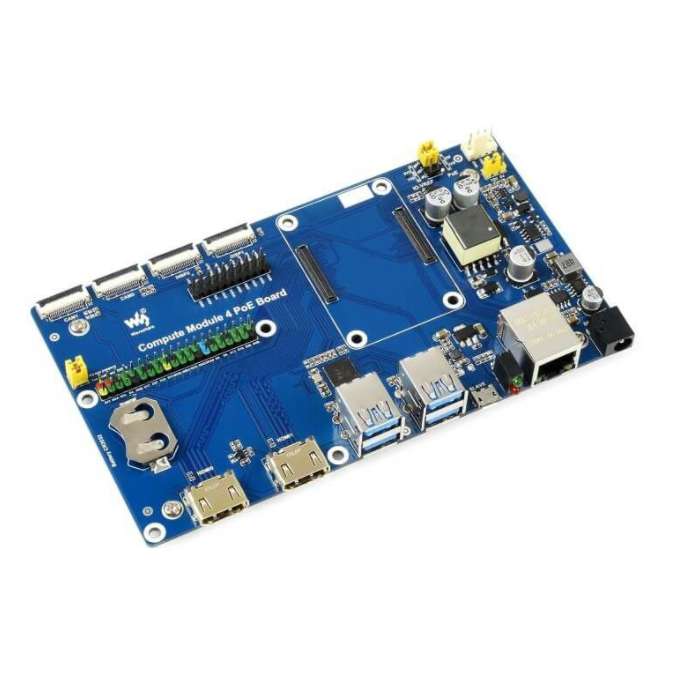

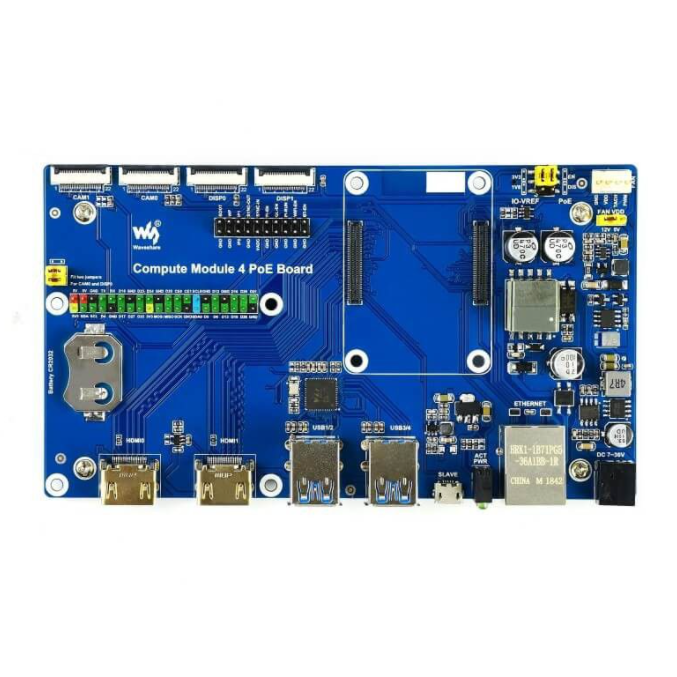

Raspberry Pi Compute Module 4 PoE IO Board

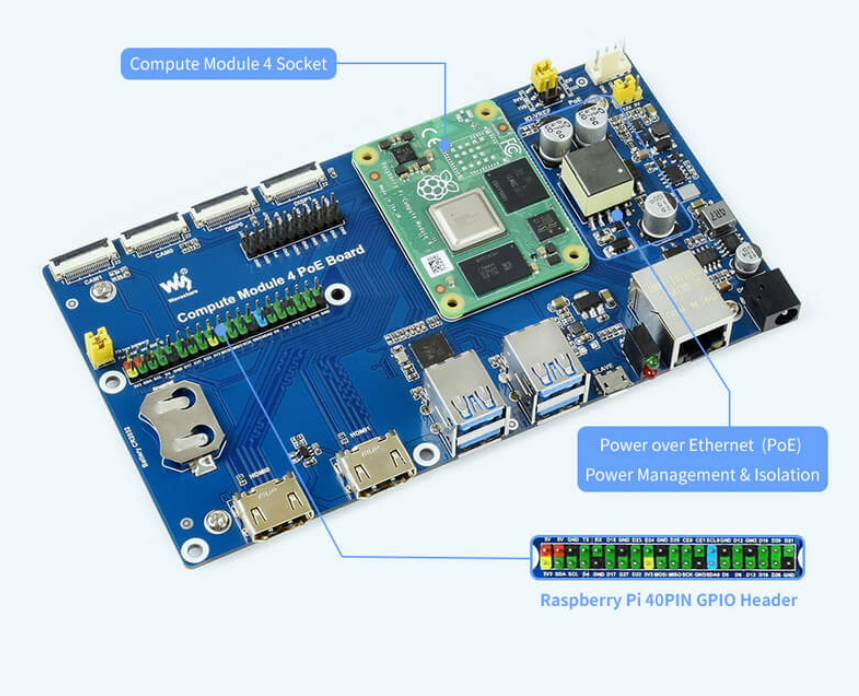

- Specially designed for CM4, with PoE capability
- Accepts the complete range of CM4 modules, all 32 variants

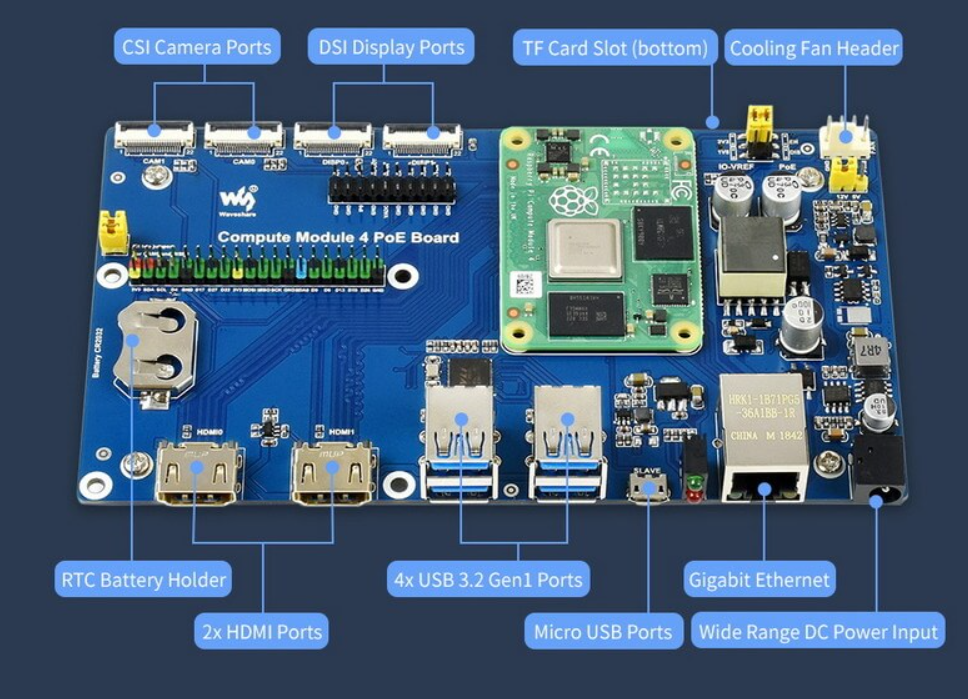

- Wide Range of Power Input via DC Barrel Jack 5.5mm*2.1mm, 7V to 36VDC.
- 2 x Full-size HDMI 2.0 connectors
- Gigabit Ethernet RJ45 with onboard POE support
- 4 x USB 3.2 Gen1 Socket.
- USB Micro B socket for updating the CM4's onboard eMMC

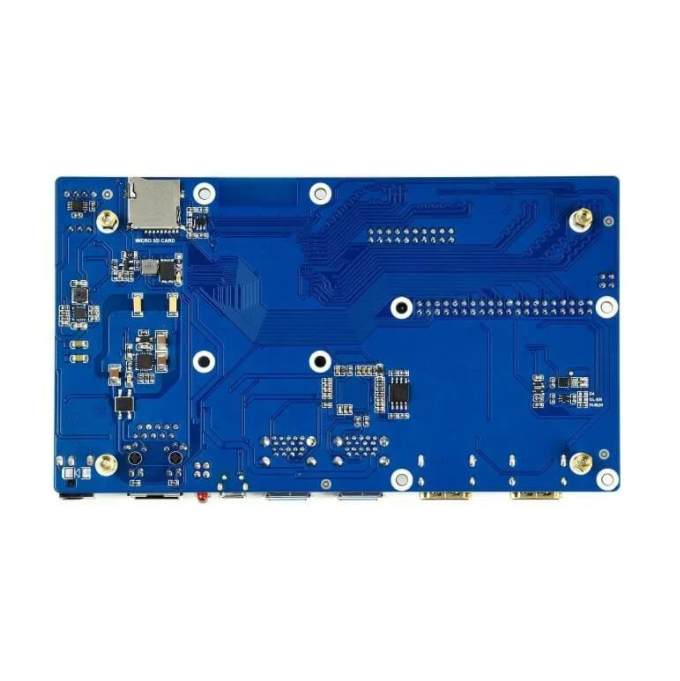

- MicroSD Card socket for CM4Lite modules, Push-Push socket
- Standard Cooling Fan connector, support PWM and Tacho feedback
- 2 x MIPI DSI display FPC connectors ( 22pin 0.5mm pitch cable)
-
2 x MIPI CSI-2 camera FPC connectors ( 22pin 0.5mm pitch cable)
- It is compatible with the Raspberry Pi Zero CSI connector, so please get the FFC/FPC cable for Raspberry Pi Zero if you do not have one.
- Raspberry Pi HAT connector, the Color Coded 40-pin GPIO, and the PoE 4-pin header
- RTC with Battery socket and ability to wake up CM4
- Various jumpers to disable features e.g Wireless, EEPROM writing

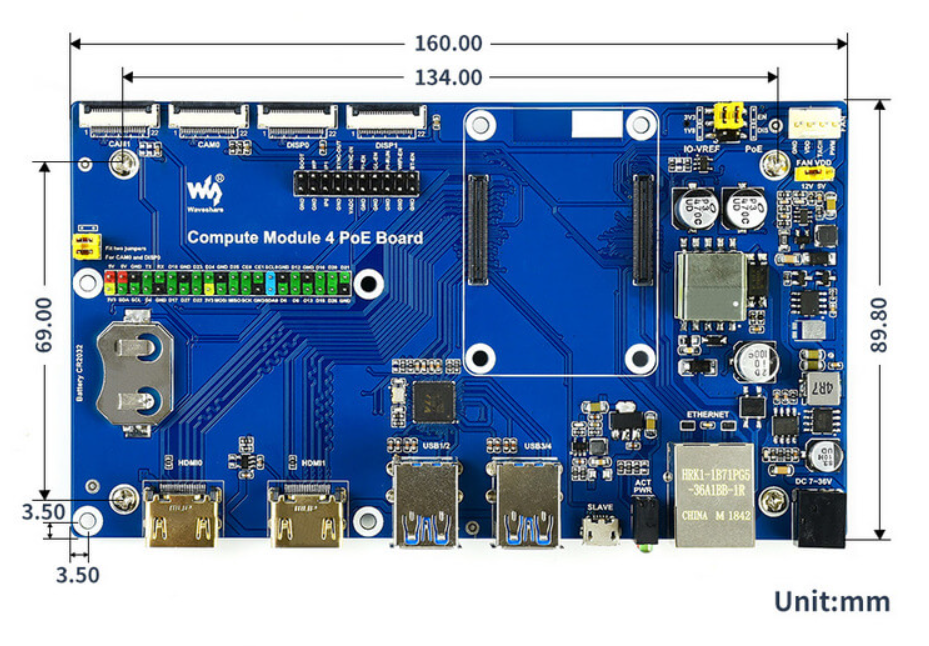

- Dimension: 160mm x 90mm
