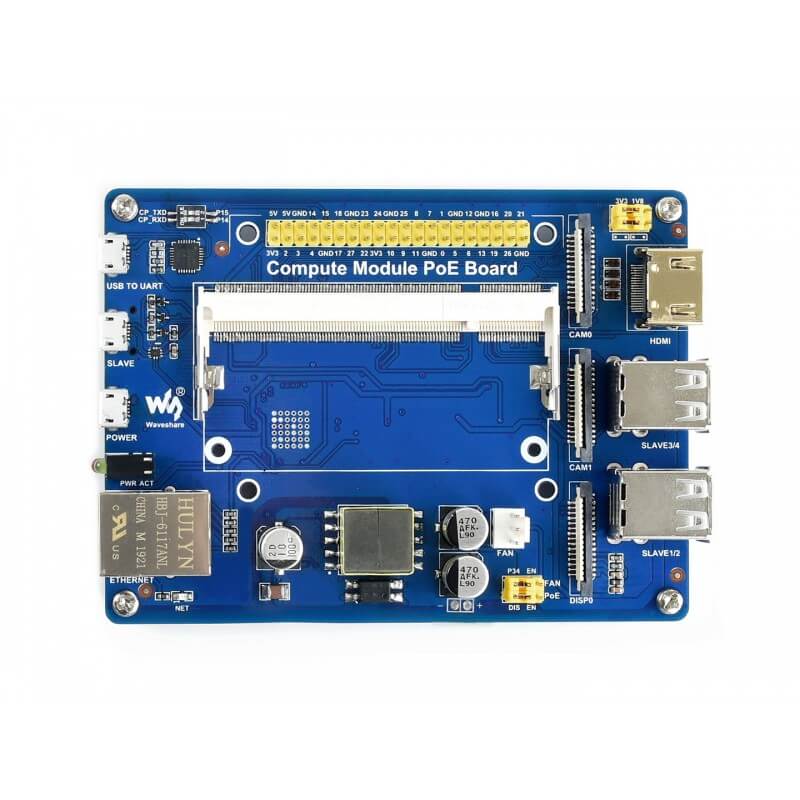

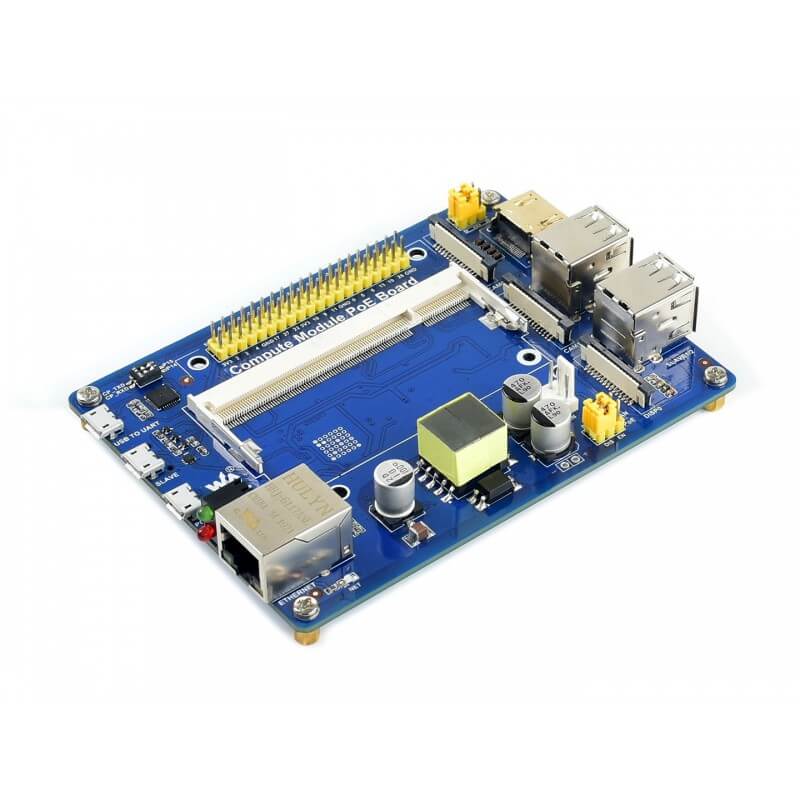

IO Board with PoE for Raspberry Pi Compute Module

Features:

• Raspberry Pi GPIO header, for connecting sorts of Raspberry Pi HATs
• 10/100M auto-negotiation Ethernet port, with PoE enabled
• 4 x USB ports, allows connecting more USB devices
• 2 x CSI camera interfaces
• Onboard HDMI / DSI interfaces for connecting displays
• Onboard USB TO UART, for serial debugging
• Cooling fan interface, auto run on power-up OR controlled by IO pins
• Adopts isolated SMPS (Switching Mode Power Supply)

Specifications:

• Power supply: micro USB port / PoE Ethernet port
• PoE power input: 37V ~ 57V DC in
• PoE power output: 5V 2.5A DC out
• Network standard: 802.3af PoE standard
• Dimensions: 114mm × 84.4mm
• Mounting hole size: 3.2mm
