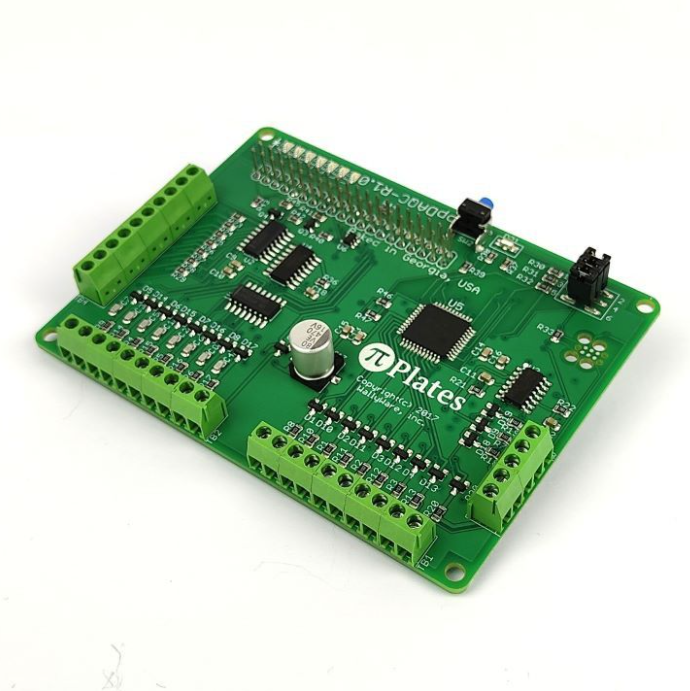

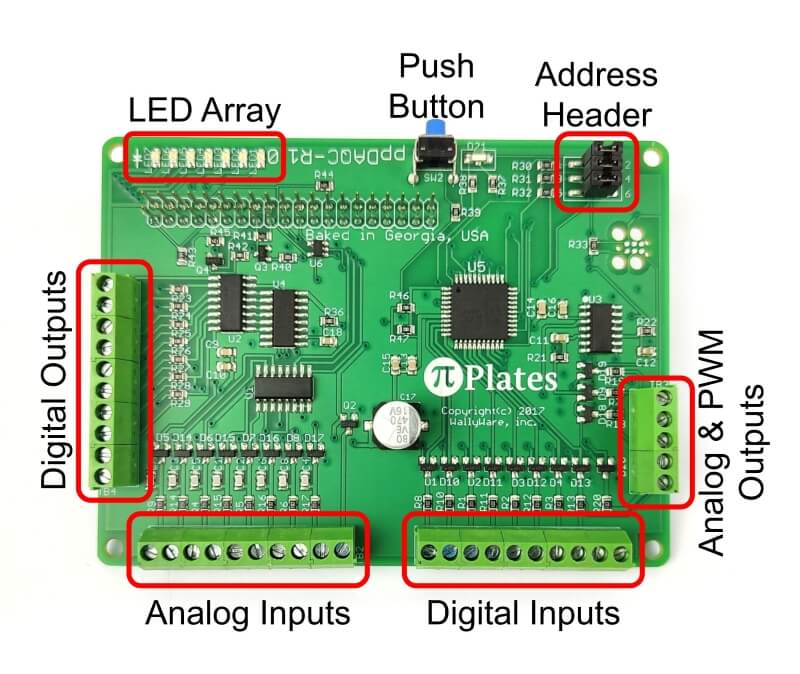

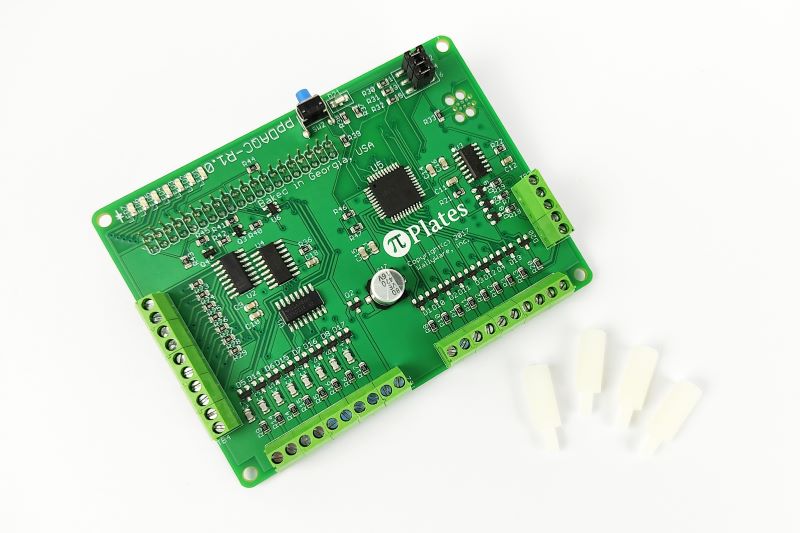

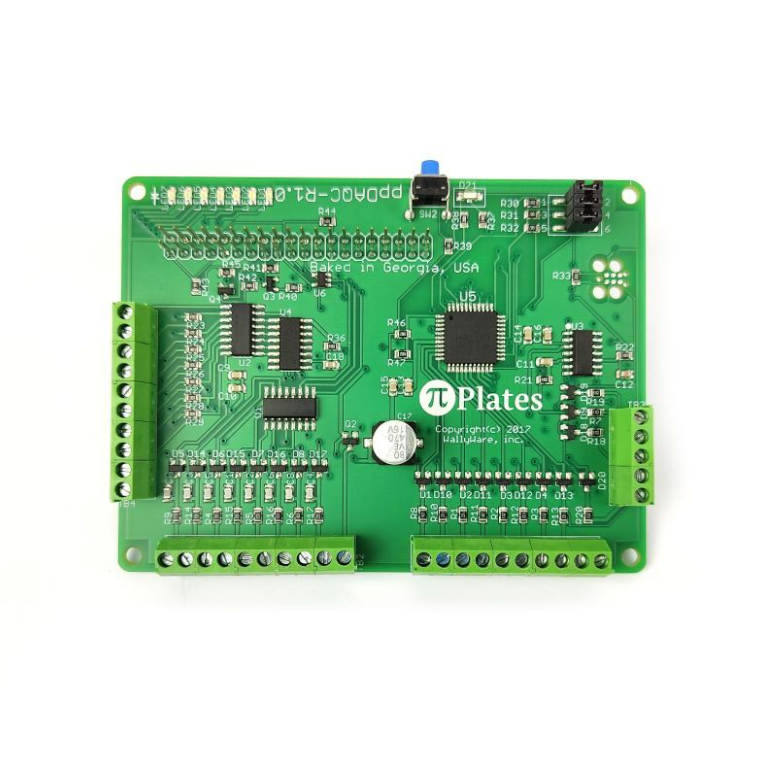

DAQ CPlate HAT
- Dedicated onboard processor - PIC16F1517
- Provides real-time data collection
- Allows for future code updates
- Only needs two dedicated RPI pins (GPIO 25 and CE1)
- All features accessible via a rich Python command set
- Compatible with all versions of Raspberry Pi Computer
- The design allows up to eight DAQCplates to be stacked together for eight times the I/O
- Uses less than 20mA of DC current during standby
- Conforms to ROHS, FCC Part 15 Class A, and CE standards
- All inputs and outputs ESD and overvoltage protected
- Protects your Raspberry Pi while providing enhanced I/O
- Includes programmable bi-color LED
- Additional 14-pin header included if B+ signals are required
- Capable of reading up to seven HC-SR04 distance sensors
- Each DAQCplate is 100% tested and verified
- Each of the 7 Digital Outputs is an open collector Darlington transistor
- Maximum sink current: 350mA
- Maximum load voltage: 12VDC
- On voltage is typically 1.1V with a load current of 200mA
- When using a relay or solenoid, the high side power supply should be connected to the “Flyback Protection” terminal
- If necessary, the onboard 5VDC is available on pins 9 and 10. If you choose to use it then make sure your power supply can provide enough current for your Raspberry Pi (~700mA), your Pi-Plates (~90mA for each DAQCplate with all LEDs on) and any components you connect to a DOUT terminal.
- Dimensions: 100mm long x 75mm wide X 11mm high
